Tent garage

4.3m

Tent garage 4.3m x 9m x 4.3m

Openable entrances at both ends
Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
Galvanised steel frame
Ground anchors for unpaved surfaces included

Colour

Tarpaulin

I am also interested in professional assembly (estimate ± €600 excl. VAT)Assembly is carried out by our 50+ technicians. We will send you the exact price for your region for approval before the proforma invoice – you can change this choice in the cart.

In stock

Delivery throughout Europe

€2,390

excl. VAT

2 940 € incl. VAT

Watch the assembly video guide

Questions about the product? We can helpDamián Halamček, MBA – Sales Manager
+421 904 687 065 Mon–Sun 7–20 h
hagro@hagro.sk

Description and specifications

Openable entrances at both ends
Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
Galvanised steel frame
Ground anchors for unpaved surfaces included

Width4.3m

Length9m

Height4.3m

ColourGreen, White, Grey

Tarpaulin750 g/m2

Entrance width4.00 m

Entrance height3.30 m

Wind resistance80 km/h

Distance between beams1.5 m

Structure

Galvanized steel pipes

Robust steel tubes that ensure the strength of the hall are protected against corrosion and rust thanks to careful galvanization, providing maximum load capacity and long durability.

Steel tubes are:

Designed for high load capacity and structural strength
Hot-dip galvanized and resistant to corrosion and rust
Resistant to impacts and scratches

Specifications:

5-year warranty against rusting
Tube diameter: ø 70 mm x 42 mm (depending on the hall size)
Tube thickness: approx. 2 mm (varies by model)

Anchoring

Thanks to the supplied anchoring system, you can install the hall on any surface WITHOUT the need for a foundation slab!

Each column features a robust base plate (with pre-drilled holes for anchoring), which increases the stability of the hall and simplifies installation
The hall is anchored using galvanized rebar anchors driven into the ground at a specific angle, ensuring strength and resistance to wind
Anchoring into concrete is possible using drive-in anchors / chemical anchors (not included in the package)

Vertical arches

The main structure of the hall consists of vertical steel arches that are interconnected, forming a strong and durable framework.

Carefully shaped steel tubes with precise holes for bolting
Solid pipes connecting the segments together, along with steel tubes, increase the hall’s resistance to wind and falling snow
The structure does not include any support columns in the middle of the hall, maximizing the usable interior space

Pipe connection

Solid connecting elements ensure high overall stability and resistance to adverse weather conditions thanks to the thorough bolting of individual structural parts with self-locking nuts, which reduces maintenance costs.

Individual parts of the arches:

Inserted into each other
Bolted together using 2 bolts with self-locking nuts (i.e., twice)

Horizontal steel tubes:

Connected to the vertical arch using a robust bolt and a self-locking nut

Hall bracing:

The hall has additional strength thanks to bracing steel tubes or steel cables (depending on the structure), ensuring stability even in strong winds

Possibility to extend

You can extend the tent hall arbitrarily “indefinitely” and thus increase the storage area of the hall.

Halls with the same width can be extended
For this purpose, the halls must be placed one behind another
The edge of the tarp of the first hall is folded over the first arch of the connecting hall
Subsequently, the tarps are secured using rope/ratchets (depending on the size of the hall)

Structure

Galvanised steel tubes

Robust steel tubes that give the hall its strength are carefully hot-dip galvanised, which protects them against corrosion and rust and guarantees maximum load-bearing capacity and a long service life. The steel tubes are:

designed for high loads and the rigidity of the hall
hot-dip galvanised, resistant to corrosion and rust
resistant to impact and scratching

Specifications:

5-year warranty against rusting
Tube diameter: ø 70 mm x 42 mm (depending on the size of the hall)
Tube wall thickness: approx. 2 mm (according to the hall)

Anchoring

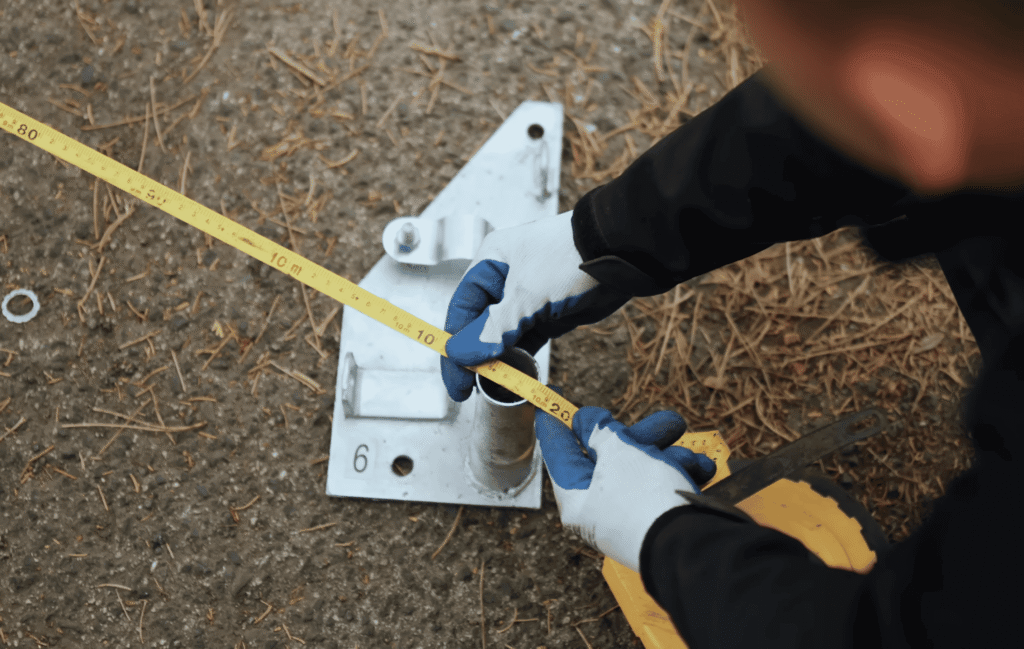

Montáž spojovacej platne konštrukcie garáže Hagro

Thanks to the supplied anchoring you can erect the hall on any surface WITHOUT a foundation slab!

Every column has a robust base plate (with pre-drilled anchoring holes) that increases the stability of the hall and makes assembly easier.
The hall is anchored with galvanised rebar ground anchors driven into the ground at a specific angle, which keeps the structure firm and wind-resistant.
Anchoring into concrete is possible with drive-in or chemical anchors (not included).

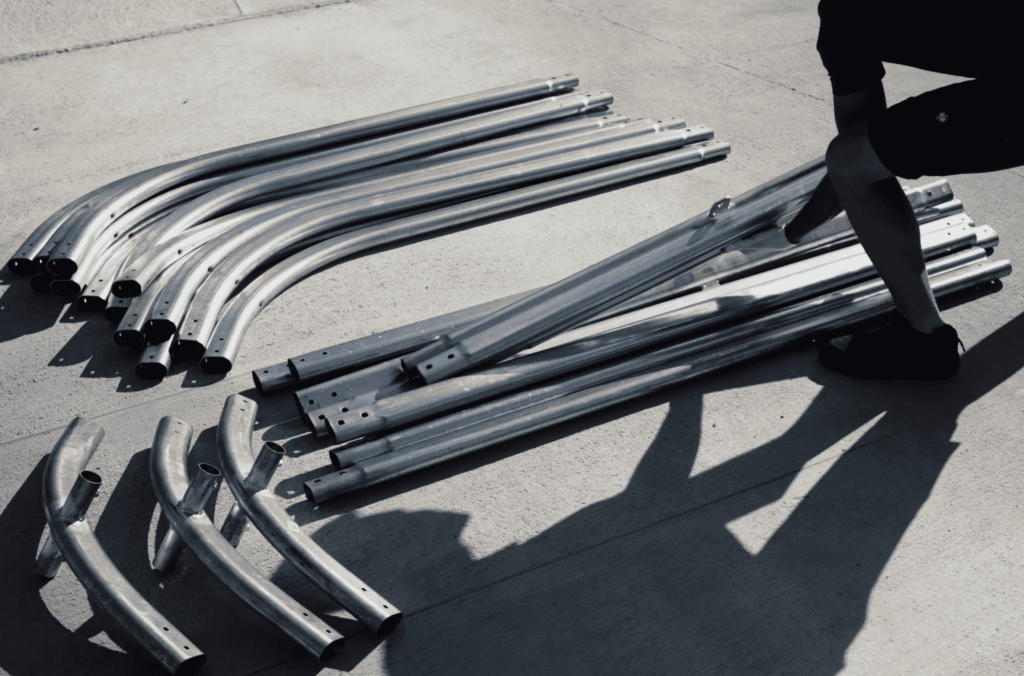

Trusses

Montáž garáže Hagro – zostavovanie konštrukcie

The main structure of the hall consists of vertical steel arches that are connected to each other, forming a strong and durable frame.

Carefully shaped steel tubes with precisely positioned bolt holes
Solid connecting tubes between the segments, together with the steel purlins, increase the resistance of the hall to wind and falling snow.
The structure has no supporting columns in the middle, which maximises the usable space inside the hall.

Tube connections

Solid connecting elements ensure high overall stability and resistance to adverse weather: all parts of the structure are bolted together thoroughly with self-locking nuts, which also keeps maintenance costs low. The individual arch sections are:

slotted into each other
bolted with 2 bolts and self-locking nuts (i.e. twice)

Horizontal steel tubes:

are connected to the vertical arch with a robust bolt and a self-locking nut

Hall bracing:

The hall gains additional rigidity from bracing steel tubes or steel cables (depending on the structure), which keep it stable even in strong wind.

Possibility to extend

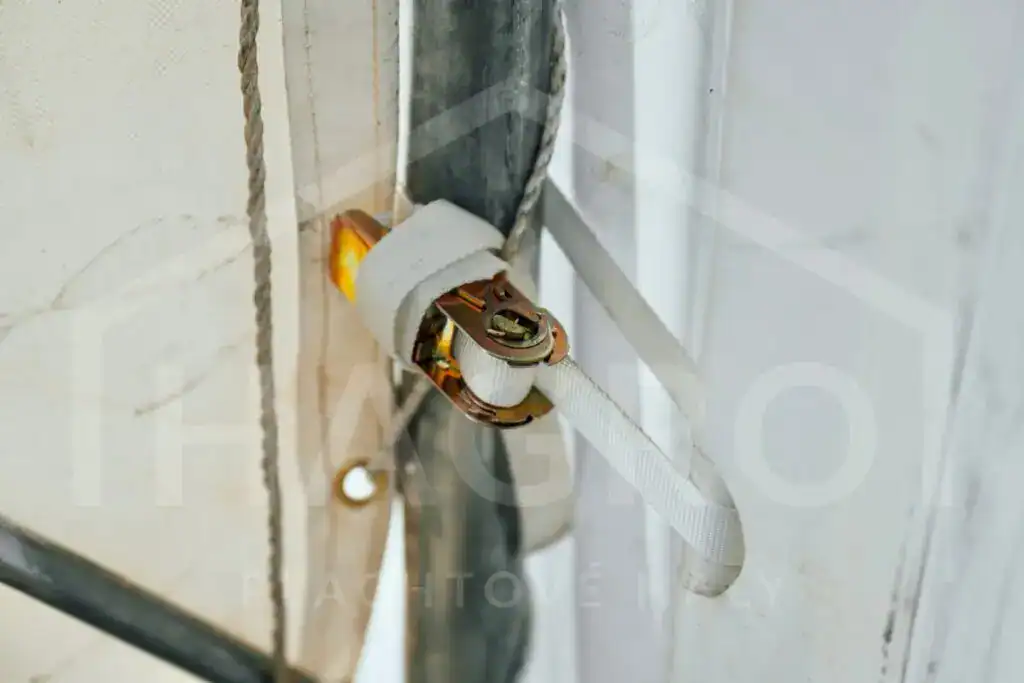

Detail svorky so žltou poistkou na konštrukcii garáže Hagro

The tarpaulin hall can be extended “endlessly” to enlarge the storage area of the hall.

Only halls of the same width can be joined
For this purpose the halls must be placed one behind the other
The edge of the first hall’s tarpaulin is folded over the first arch of the hall being joined
The tarpaulins are then fastened with a rope / ratchet straps (depending on the size of the hall)

PVC tarpaulin and entrances

Thanks to its dense inner fabric, the 3-layer PVC tarpaulin is extremely tear-resistant and lasts for a very long time. It is also flame-retardant and blocks harmful UV radiation.

What makes our tarpaulins stand out:

Thanks to quality materials they are 100% waterproof
Up to 3x more durable than standard PVC tarpaulins (resistant to rain, snow, mould, wind and damage)
They have a bottom “skirt” for protection against moisture and wind
They let natural light through and block UV radiation
3-layer tarpaulin: the bottom and top layers are PVC, the middle layer is a non-elastic fabric

Specification:

Various tarpaulin weights (thicknesses): 650 g/m² (20-year lifespan), 750 g/m² (22-year lifespan), 900 g/m² (25-year lifespan)
Available in white or green.

Once the frame is assembled, the main (roof) tarpaulin is pulled over the structure and fixed to the arch bases using a robust ratchet tensioning system.

Installing the main tarpaulin is very easy:

The roof tarpaulin is pulled over the frame (using ropes)
The tarpaulin is then tied with rope to the first and last arch and tensioned using the straps and ratchets.
The end tarpaulins (front and rear entrance) are fixed to the frame with the supplied rope / straps

Our tent halls have a manufacturer-stated lifespan of 20 years or more.
Thanks to the special 3-layer PVC tarpaulin the hall is durable and shows almost no wear over time.
Thanks to the shape of the hall, neither dirt nor snow stays on it
High-quality zips and stainless brass eyelets
Easy-to-wash tarpaulin with minimal maintenance
The hall can also be heated or thermally insulated (by a third-party company)

The package also includes 2 end tarpaulins together with 2 entrance gates

Vehicle access and quick entry are ensured by:

Entrances on both ends of the hall (front and rear)
Extra-large door dimensions for vehicles
Roll-up doors opened with a manual winch / rope (depending on the hall type)
The option to cut any number and size of entrances into the hall (including the sides)
The option not to fit the front and rear ends, turning the hall into a “tunnel” and gaining the full entrance width and height

Installation

Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
Standard tools are all you need (hammer, spanner, ladder, knife…)
We recommend having 1 lifting device available (forklift, loader, etc.)
You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

Package contents

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

Galvanised steel frame (including entrances)
Main PVC tarpaulin
Anchoring for unpaved ground (or concrete)
Complete assembly instructions in English
Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Accessories

Electric cable winch 400/800 kg

In stock

Delivered within 2-7 working days

€175

excl. VAT

Find out more

One-piece ratchet strap 1.3m

In stock

Delivered within 2-7 working days

€2

excl. VAT

Find out more

Drive-in through-bolt anchor

In stock

Delivered within 2-7 working days

€1

excl. VAT

Find out more

Openable entrances at both ends
Waterproof, UV-resistant PVC tarpaulin with a 20+ year lifespan
Galvanised steel frame
Ground anchors for unpaved surfaces included

Width: 4.3m

Length: 9m

Height: 4.3m

Colour: Green, White, Grey

Tarpaulin: 750 g/m2

Entrance width: 4.00 m

Entrance height: 3.30 m

Wind resistance: 80 km/h

Distance between beams: 1.5 m

Galvanized steel pipes

Robust steel tubes that ensure the strength of the hall are protected against corrosion and rust thanks to careful galvanization, providing maximum load capacity and long durability.

Steel tubes are:

Designed for high load capacity and structural strength
Hot-dip galvanized and resistant to corrosion and rust
Resistant to impacts and scratches

Specifications:

5-year warranty against rusting
Tube diameter: ø 70 mm x 42 mm (depending on the hall size)
Tube thickness: approx. 2 mm (varies by model)

Anchoring

Thanks to the supplied anchoring system, you can install the hall on any surface WITHOUT the need for a foundation slab!

Each column features a robust base plate (with pre-drilled holes for anchoring), which increases the stability of the hall and simplifies installation
The hall is anchored using galvanized rebar anchors driven into the ground at a specific angle, ensuring strength and resistance to wind
Anchoring into concrete is possible using drive-in anchors / chemical anchors (not included in the package)

Vertical arches

The main structure of the hall consists of vertical steel arches that are interconnected, forming a strong and durable framework.

Carefully shaped steel tubes with precise holes for bolting
Solid pipes connecting the segments together, along with steel tubes, increase the hall’s resistance to wind and falling snow
The structure does not include any support columns in the middle of the hall, maximizing the usable interior space

Pipe connection

Individual parts of the arches:

Inserted into each other
Bolted together using 2 bolts with self-locking nuts (i.e., twice)

Horizontal steel tubes:

Connected to the vertical arch using a robust bolt and a self-locking nut

Hall bracing:

The hall has additional strength thanks to bracing steel tubes or steel cables (depending on the structure), ensuring stability even in strong winds

Possibility to extend

You can extend the tent hall arbitrarily “indefinitely” and thus increase the storage area of the hall.

Halls with the same width can be extended
For this purpose, the halls must be placed one behind another
The edge of the tarp of the first hall is folded over the first arch of the connecting hall
Subsequently, the tarps are secured using rope/ratchets (depending on the size of the hall)

Quick and easy installation (usually within 1 day) that absolutely anyone can manage.
Standard tools are all you need (hammer, spanner, ladder, knife…)
We recommend having 1 lifting device available (forklift, loader, etc.)
You receive complete assembly instructions + a technician on the phone free of charge for any questions during installation

The whole hall (frame including tarpaulin) is packed in 1 or more boxes (depending on the size)

Package contents

Galvanised steel frame (including entrances)
Main PVC tarpaulin
Anchoring for unpaved ground (or concrete)
Complete assembly instructions in English
Adhesive tape, rope for fixing the tarpaulin, bolts, nuts and everything needed for assembly

Electric cable winch 400/800 kg

In stock

Delivered within 2-7 working days

€175

excl. VAT

Find out more

One-piece ratchet strap 1.3m

In stock

Delivered within 2-7 working days

€2

excl. VAT

Find out more

Drive-in through-bolt anchor

In stock

Delivered within 2-7 working days

€1

excl. VAT

Find out more

Extended product description

A tarpaulin garage that can withstand strong winds and snow. With this tarpaulin garage, your motorhome or caravan will be safe from snow and wind . The tarpaulin is about 3 times stronger than conventional tarpaulin garages for cars, it can withstand winds of up to 80 km/h and a layer of fresh snow more than 100 cm high. Thanks to the mobile design, you can set up and take down the garage very easily.

Wind resistance up to 80 km/h (wind speed during a gale is 75 to 88 km/h)
Robust arched structure made of hot-dip galvanized pipes with a diameter of 42 mm (lengthwise 28 mm).
The garage has zippered doors on both sides .
The lifespan of the sail is up to 25 years .

Thanks to the spacious construction, you will have enough space not only to move around the car, but also for possible maintenance. You do not need any professional knowledge or special equipment to assemble the garage, you can build it in any place where you usually park. Each delivery includes a manual for assembling the hall. Durable tarpaulin with a lifespan of up to 25 years – Weight 750 g/m ² PVC tarpaulin with a weight of 750 g/m ² guarantees high durability and an extremely long lifespan of up to 25 years. The garage is resistant to winds of up to 80 km/h. PVC tarpaulin is a polyester fabric (textile) made by applying a layer of PVC with a lifespan of up to 25 years. It is a three-layer tarpaulin, where the top and bottom layers are made of PVC and the middle layer is made of inelastic textile. Thanks to this composition, the PVC tarpaulin is waterproof, water-resistant, does not change its dimensions and is tear-resistant. In case of mechanical damage, it can be easily welded. Other characteristic features are UV resistance, class B fire resistance and resistance in various climatic conditions. It is highly resistant to wind and snow. Possible uses

Garage for a motorhome (caravan)
Garage for a van or smaller truck
Covered work space with extra height
Storage space with above-standard height
